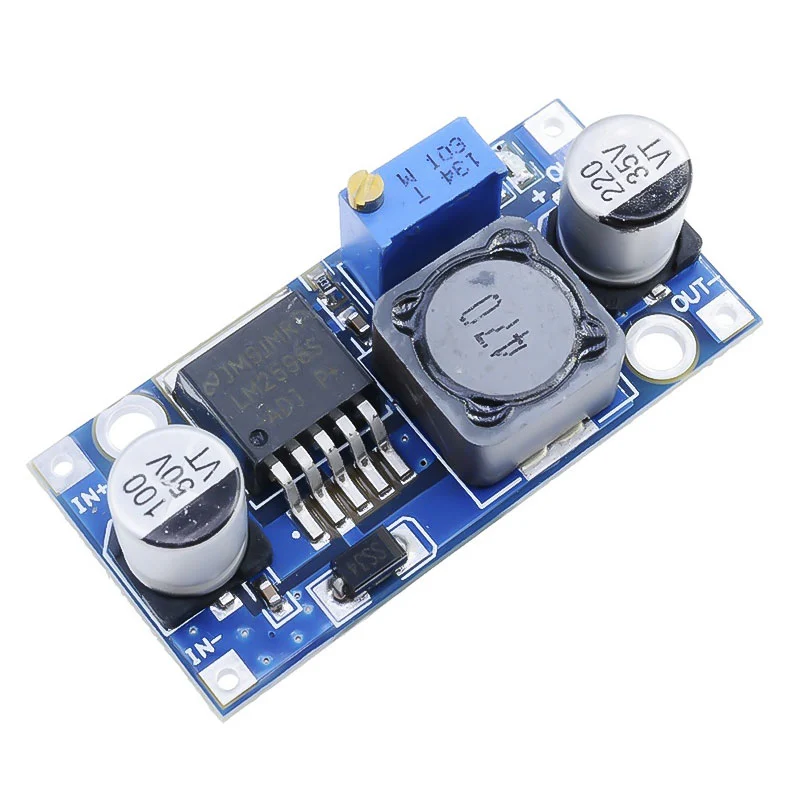

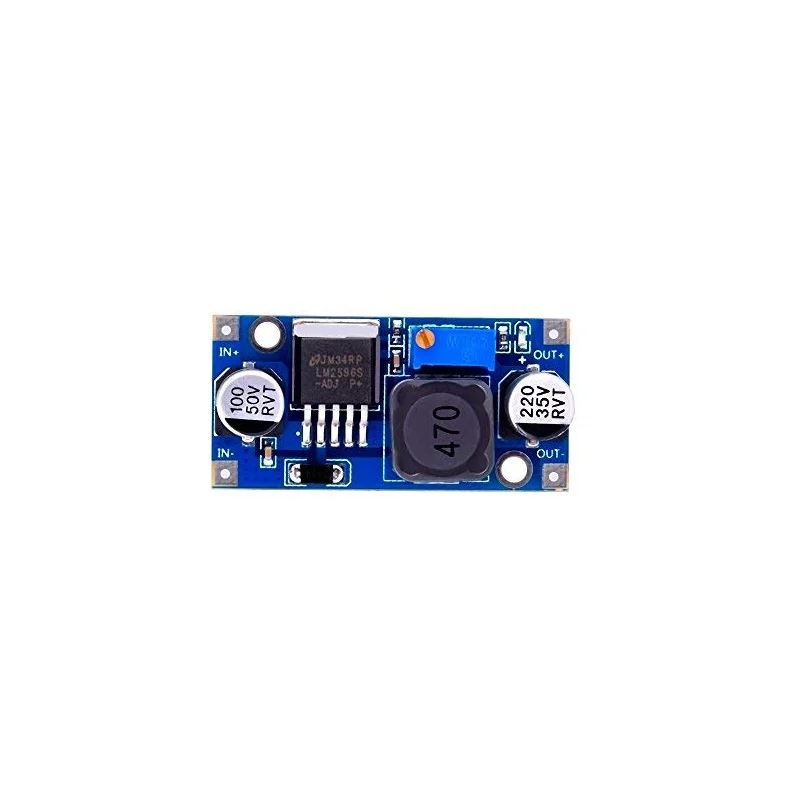

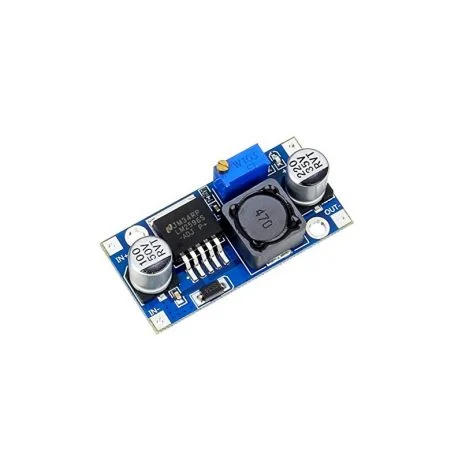

LM2596 BUCK CONVERTER

1. Adjustment method: first correct input power (between 4.5-50V) then multimeter to monitor the output voltage and adjust the potentiometer (usually clockwise turn boost, buck turn counterclockwise),
2. Input: IN+ input positive IN- input negative
3. Output: OUT+ output positive OUT- output negative
4. Static power consumption is only about 6mA.
5. Connection: Welding, plus pin can be directly soldered after the PCB.
6. Short circuit protection: current limiting, thermal protection, self-recovery.
7. Non-isolated step-down (BUCK) switching regulator.
8. Short circuit protection: Current limiting, self-recovery
9. The potentiometer adjustment direction is Clockwise (increase) and Anti-clockwise (decrease)
10. Non-synchronous rectification

Pinout:
